Designing Strong Parts for FDM with ABS and PETG: Tips from South Elgin Experts

Understanding Material Properties

When it comes to Fused Deposition Modeling (FDM), choosing the right material is crucial for achieving strong and durable parts. Two popular materials in the FDM world are ABS (Acrylonitrile Butadiene Styrene) and PETG (Polyethylene Terephthalate Glycol). Each material has its own set of unique properties that make it suitable for different applications. ABS is known for its toughness and impact resistance, while PETG offers excellent clarity and chemical resistance.

It's important to understand these material properties because they directly influence the structural integrity and functionality of the printed parts. South Elgin experts suggest that assessing your project's specific requirements can help in selecting the most appropriate material. Consider factors such as strength, flexibility, and environmental exposure when making your decision.

Designing for Strength

Designing parts with strength in mind is essential when working with ABS and PETG. Experts recommend focusing on several key aspects during the design phase. First, ensure that your design incorporates sufficient wall thickness. This can help in distributing loads evenly and preventing stress concentrations that could lead to failure.

Additionally, pay attention to the orientation of your print. The layer-by-layer nature of FDM means that parts are inherently weaker along the layer lines. Orienting your part to minimize stress along these lines can result in a stronger final product. Using honeycomb or gyroid infill patterns can also enhance the strength of your parts without adding excessive weight.

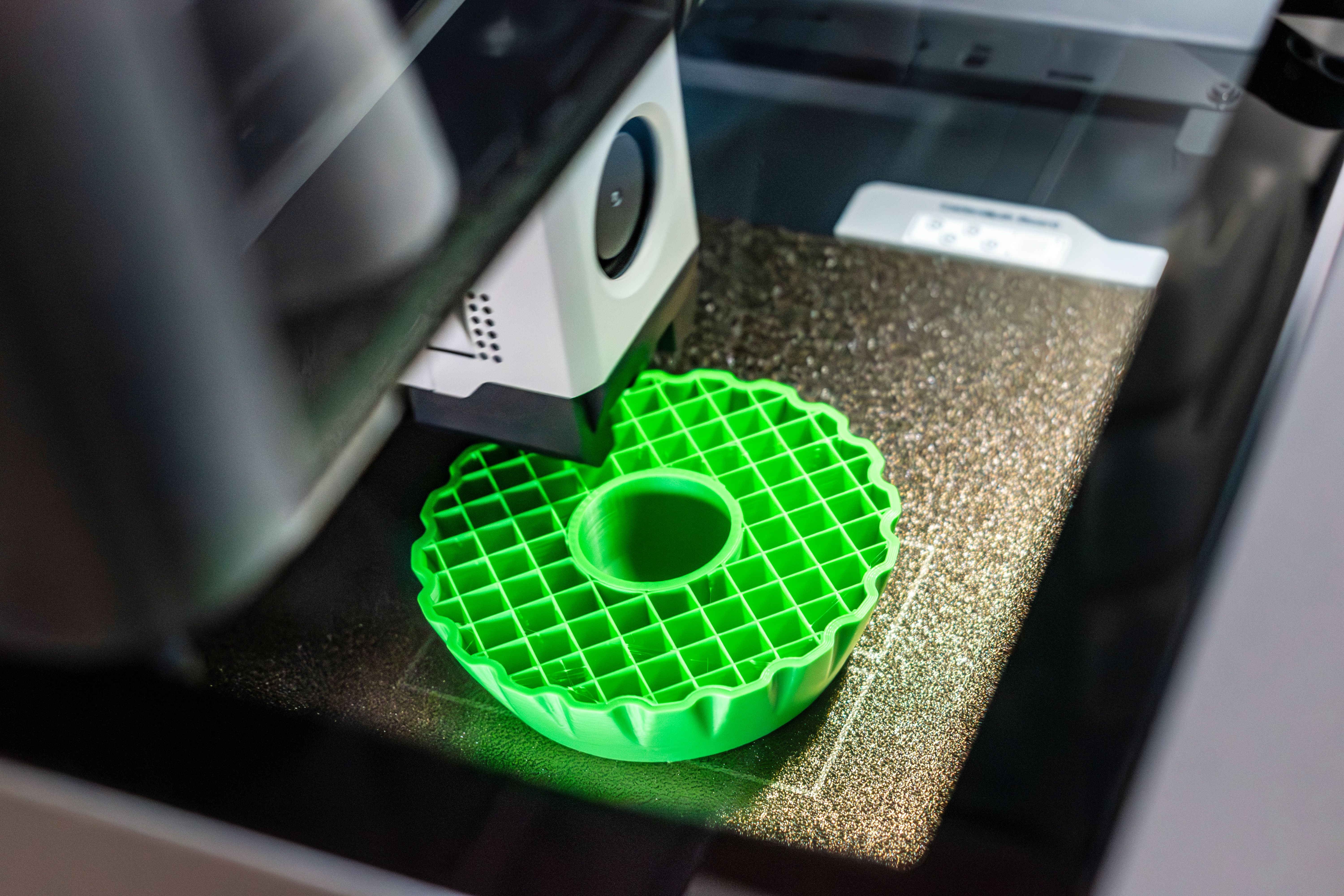

Optimizing Print Settings

Another critical factor in designing strong parts is optimizing your print settings. For ABS, a heated bed and an enclosed printing environment are often necessary to prevent warping and ensure good layer adhesion. South Elgin experts suggest maintaining a bed temperature of around 100°C and a nozzle temperature between 220°C and 250°C for optimal results.

For PETG, a lower bed temperature of around 70°C to 80°C is typically sufficient, with nozzle temperatures ranging from 220°C to 250°C. It's also important to adjust your print speed and cooling settings appropriately. Slower print speeds can improve layer adhesion, while minimal cooling can prevent PETG from becoming brittle.

Post-Processing Techniques

Once the parts are printed, post-processing techniques can further enhance their strength and appearance. For ABS, acetone vapor smoothing is a popular method that not only improves the surface finish but also slightly melts the outer layer, increasing interlayer bonding.

PETG parts can often benefit from sanding and polishing to achieve a smoother finish. This process can help in reducing stress risers on the surface, which might otherwise serve as starting points for cracks under load. Remember that proper post-processing can significantly extend the lifespan and performance of your printed parts.

Prototyping and Testing

Prototyping is an invaluable step in the design process, allowing you to test the functionality and strength of your parts before final production. South Elgin experts emphasize the importance of iterative testing. By creating prototypes, you can identify weaknesses or areas for improvement and adjust your design accordingly.

Testing should simulate the real-world conditions your parts will face. This might include applying pressure, heat, or other environmental factors to ensure your design can withstand the intended use. By iterating on your design based on testing feedback, you can achieve a robust and reliable final product.
